Duplicate Duplicate Duplicate Hyundai Motor 75P 55KW 4P 440V Horizontal B3
Hyundai Motor 75P 55KW 4P 440V Horizontal B3
168.00 Reward points to be earned to be earned
Hyundai Motor 75HP 55KW 4P
440V Horizontal B3
Contact
Tel: +82-51-903-1302
Mobile: 010-9311-1302
email: cktech@safetycleaner.com
cktech2016@gmail.com
CKTECH Ship/Marine, Product/Service Information Guide Matching Platform
https://www.cktechb2b.com/
CKTECH Shipping/Marine Equipment Shopping Mall Shipping/Marine Equipment Shopping Mall
https://www.cktechb2b.com/
Hyundai Motor
Horizontal / B3
Power(Rated of Output): 55KW(75HP )
Pole:4P
RPM: 1780
Volt(Rated of Voltage): 440V
Electric current(Rated of Frequency): 60HZ
Enclosure(Protection): IP55
Ambient temp(Ambient temperature): AMB 40℃
Weight: 350KG
CKTECH provides technical guidance for compatible and alternative motors with other motors.
CKTECH can supply to Compatible and replacement motors
(Compatible, product replacement products Subject to change depending on product specifications)
Ex) Hyundai, Hyosung, Heigen, ABB, Siemens, etc.
Other manufacturers with compatible Product specifications
Power(Rated of Output) : 0.75kw/1hp - 160kw/214hp
Mounting type: (Plange/Vertical : B5, V1), (Horizontal , B3)
Pole : 2/4/6/8P
Modification of motor and replacement of flanges are possible.
Example) Horizontal type (B3) --> Horizontal and vertical type (B3B5) modify production
Example) Flange replacement fabrication
Flange P. C. D 215 (standard product) ---> Flange P. C. D 165 (Flange replacement product)

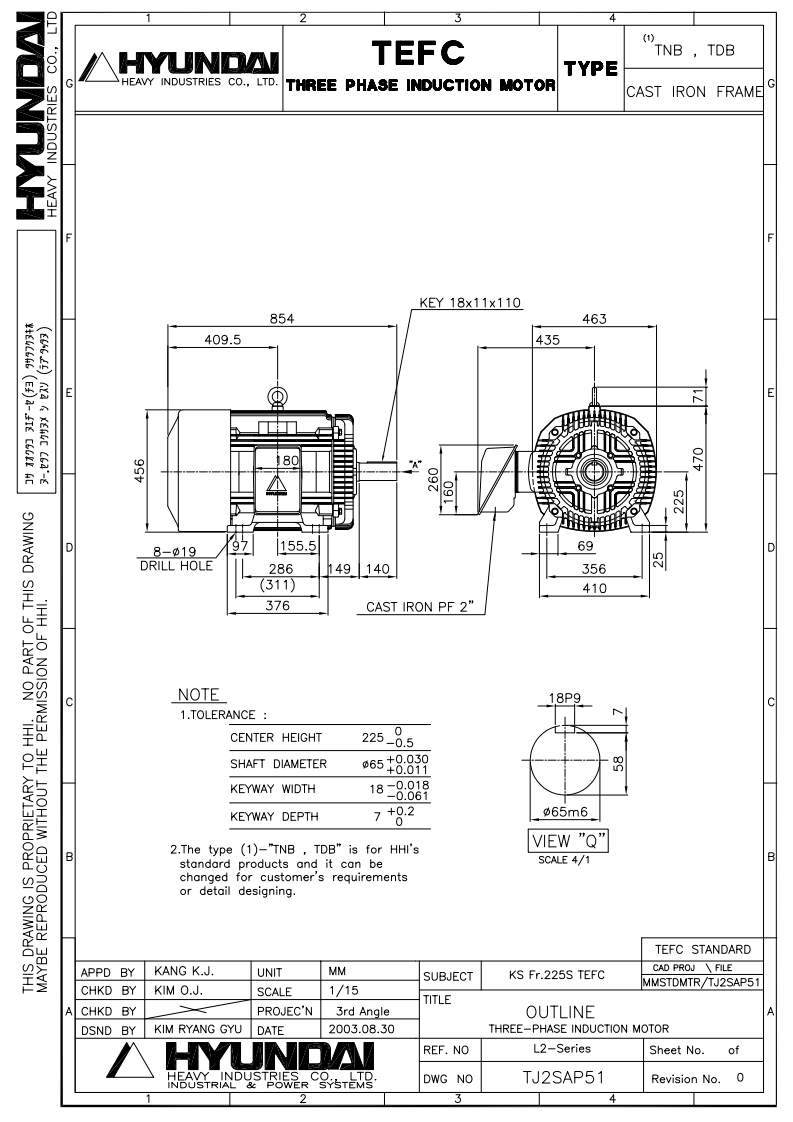

Drawing

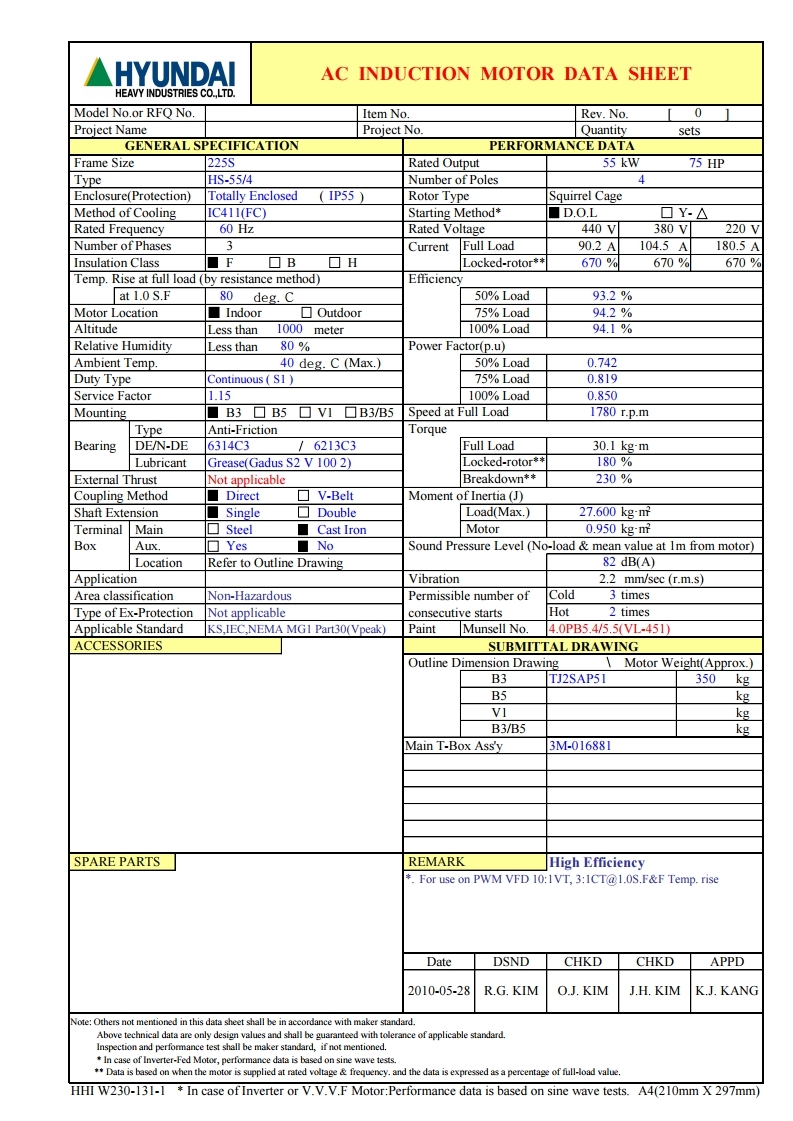

사양(Specification)

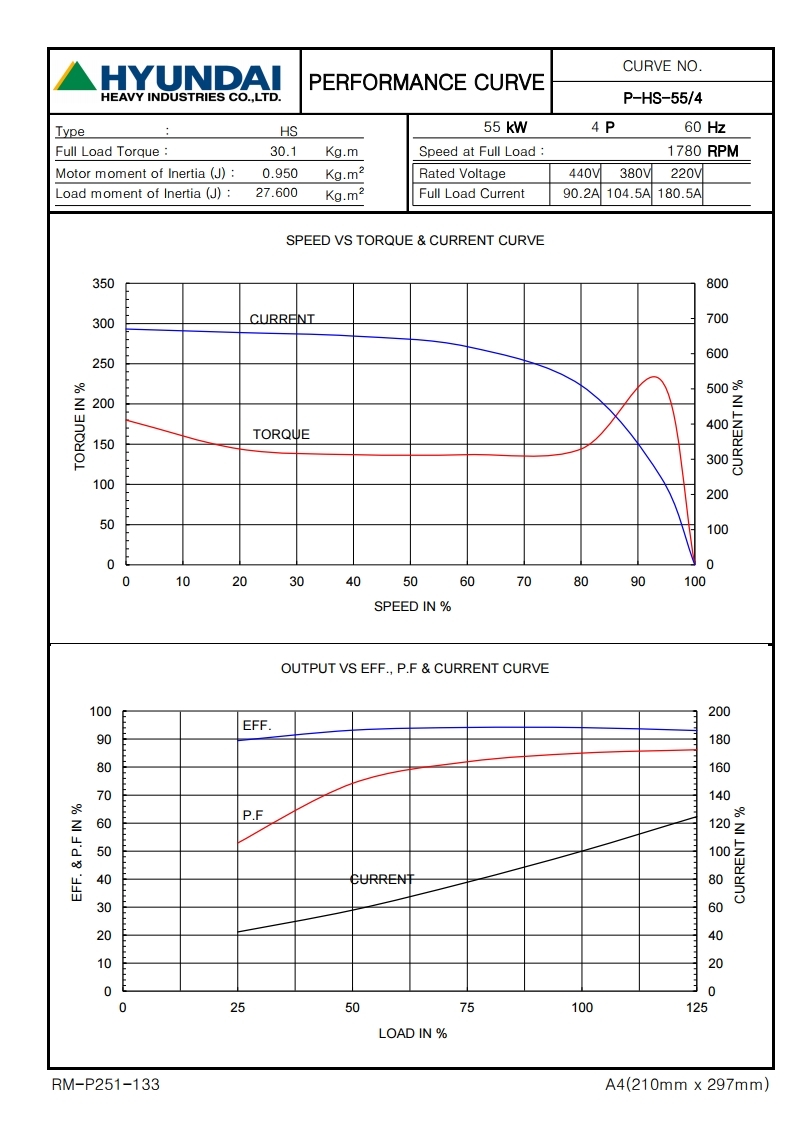

성능곡선도(Performance Curve)
Motor stock
Marine/Land motor(0.75KW - 160KW / 1HP - 214HP, 380/440V, 50/60HZ, 2/4/6/8P)
--> Horizontal Type, Plange/Vertical Type
Motor warehouse view
Marine/Land motor (0.75KW - 160KW / 1HP - 214HP, 380/440V, 50/60HZ, 2/4/6/8P)
--> Horizontal Type, Plange/Vertical Type
Marine/Land motor (0.75KW - 160KW / 1HP - 214HP, 380/440V, 50/60HZ, 2/4/6/8P)
--> Horizontal Type, Plange/Vertical Type
Marine/Land motor (0.75KW - 160KW / 1HP - 214HP, 380/440V, 50/60HZ, 2/4/6/8P)
--> Horizontal Type, Plange/Vertical Type
Contact
Tel: +82-51-903-1302
Mobile: 010-9311-1302
email: cktech@safetycleaner.com
cktech2016@gmail.com
CKTECH Ship/Marine, Product/Service Information Guide Matching Platform
CKTECH Shipping/Marine Equipment Shopping Mall Shipping/Marine Equipment Shopping Mall
https://www.cktechb2b.com
연락처
051-903-1302
1. 사용자 과실에 의한 파손 및 고장은 반품/교환 안됩니다.
2. 단순 변심에 의한 교환 배송비는 구매자 부담입니다.
A/S연락처
051-903-1302
1. A/S 신청시 미리 연락주시기 바랍니다.
2. 상품 A/S는 제조사 A/S 규정을 준수하여 처리됩니다.
3. 유상 A/S 조건에 해당하는 경우 배송비는 구매자 부담입니다.
1. A/S 신청시 미리 연락주시기 바랍니다.
2. 상품 A/S는 제조사 A/S 규정을 준수하여 처리됩니다.
3. 유상 A/S 조건에 해당하는 경우 배송비는 구매자 부담입니다.
