Duplicate Hyundai Motor 5HP 3.7KW 2P 440V B5 V1

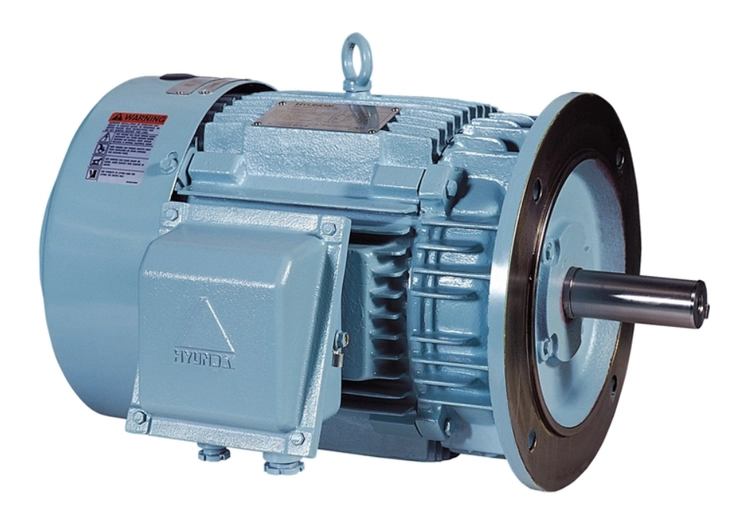

Hyundai Motor 5HP 3.7KW 2P 440V B5 V1
13.29 Reward points to be earned to be earned
Parcel · Default Free
Country
/Region
Korea, Republic of
Hyundai Motor 5HP 3.7KW 2P 440V B5 V1
Contact
Tel: +82-51-903-1302
Mobile: 010-9311-1302
email: cktech@safetycleaner.com
cktech2016@gmail.com
CKTECH Ship/Marine, Product/Service Information Guide Matching Platform
https://www.cktechb2b.com/
CKTECH Shipping/Marine Equipment Shopping Mall Shipping/Marine Equipment Shopping Mall
https://www.cktechb2b.com/
Hyundai Motor
B5 V1
Power(Rated of Output): 3.7KW(5HP )
Pole: 2P
RPM: 3430
Volt(Rated of Voltage): 440V
Electric current(Rated of Frequency): 60HZ
Enclosure(Protection): IP55
Ambient temp(Ambient temperature): AMB 40℃
Weight: 47KG
CKTECH provides technical guidance for compatible and alternative motors with other motors.
CKTECH can supply to Compatible and replacement motors
(Compatible, product replacement products Subject to change depending on product specifications)
Ex) Hyundai, Hyosung, Heigen, ABB, Siemens, etc.
Other manufacturers with compatible Product specifications
Power(Rated of Output) : 0.75kw/1hp - 160kw/214hp
Mounting type: (Plange/Vertical : B5, V1), (Horizontal , B3)
Pole : 2/4/6/8P
Modification of motor and replacement of flanges are possible.
Example) Horizontal type (B3) --> Horizontal and vertical type (B3B5) modify production
Example) Flange replacement fabrication
Flange P. C. D 215 (standard product) ---> Flange P. C. D 165 (Flange replacement product)
Drawing
Specification
Performance Curve
Motor stock
Marine/Land motor(0.75KW - 160KW / 1HP - 214HP, 380/440V, 50/60HZ, 2/4/6/8P)
--> Horizontal Type, Plange/Vertical Type
Motor warehouse view
Marine/Land motor (0.75KW - 160KW / 1HP - 214HP, 380/440V, 50/60HZ, 2/4/6/8P)
--> Horizontal Type, Plange/Vertical Type
Marine/Land motor (0.75KW - 160KW / 1HP - 214HP, 380/440V, 50/60HZ, 2/4/6/8P)
--> Horizontal Type, Plange/Vertical Type
Marine/Land motor (0.75KW - 160KW / 1HP - 214HP, 380/440V, 50/60HZ, 2/4/6/8P)
--> Horizontal Type, Plange/Vertical Type
