ESG application, Ship Heaving Line Thrower Launcher Gun, Heaving Line Thrower Gun, Heaving Line air gun, Pneumatic Heaving line thrower
IMPA CODE: 331345
Heaving Line Launcher Gun
(Heaving Line Thrower Gun, Heaving Line air gun )
Pneumatic Heaving line thrower
IMPA CODE: 331345
ESG application
1. It offers high cost performance at 1/3 (30%) price of existing products.
2. Unlike existing products, a separate high-pressure compressor or
There are no consumable parts, so there are no maintenance costs
HEAVING LINE LAUNCHER GUN
Maker Comparison Table
The Heaving line manual operation VS
The Heaving line launcher gun operation
Comparing the operational safety and effectiveness.
Reference
KTMC LINE
DOJIMA MARINE
Cheongyeong Shipping
Suseong Shipping
Fan star line
NamSung Shipping
WAN HAI LINES
Panstar Line
and other shipping companies
Heaving line manual operation VIDEO
Heaving line Docks operatoion
Heaving line LNG ship and tugboat connecting
Heaving line Ship repair yard work
Heaving line Ship repair yard work 2
VS
Heaving line launcher gun operation VIDEO
VIDEO 2
VIDEO 3
Currently, many ship sailing, except for some vessels such as very large LNG,
Cruse ship are throwing heaving lines manually.
In addition, existing products price is too high than usability.
We will guide you to South Korea produced heaving line thrower that have improved the effect of these existing products.
Features
1. It is a light product. The weight is 8KG
2. We offer high low cost at 1/3(30%) the price of overseas products.
3. Compared to existing products that require a separate high-end compressor and Consumable parts.
But Our Product need A low-pressure compressor of 1HP also works, and the maintenance is not need.
because, Our Product does not need Consumable parts
4. As a stainless steel product, it is resistant to operation by seawater and has excellent durability.
Movement distance up to 90M (based on pneumatic pressure of 6 Bar)

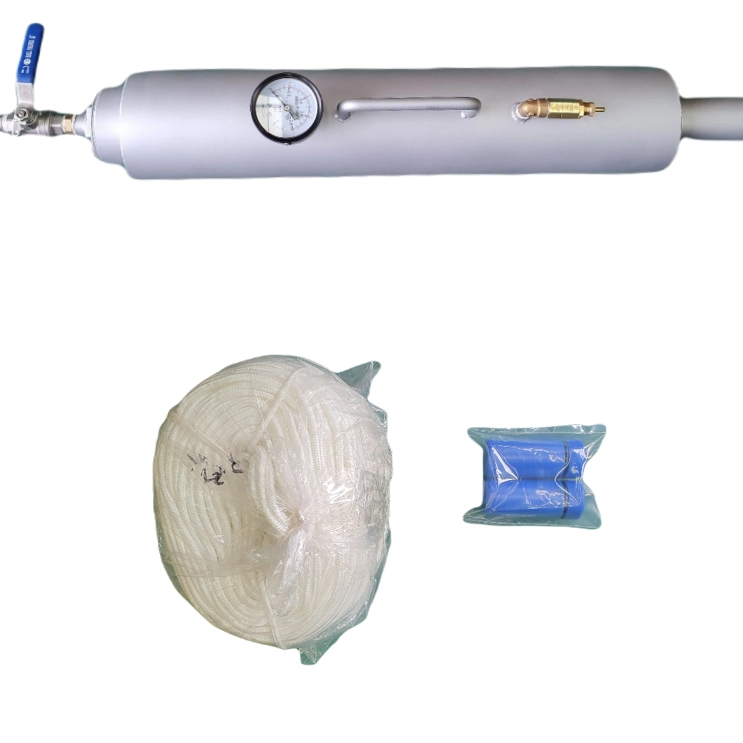

1. The main body of the heaving line launcher machine, Heaving Line & Head
Specification
MODEL | Length (mm) | Diameter (mm) | Launch hole diameter (mm) | Launch hole launch hole (mm) | Max working pressure (MPa) | Dimesion (W*L*H) | Weight(kg) |
ATG-100 | 830 | 160 | 115 | 550 | 0.9 | 900*350*250 | 8 |
Launch Angle (20~45degree)
Pneumatic / Movement distance
Mpa/Bar | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
M | 65 | 70 | 80 | 88 | 95 |
If you want region Agent and have any question feel free contact to me.
Contact
Tel: +82-51-903-1302 / +82-010-9311-1302
Email: info@cktechb2b.com
#Heaving line thrower #Heaving line launcher #Heaving line air gun #Heaving line #30% price #1/3 price #lifeline launcher #lifeline thrower #ATEX certified Wet and Dry Pneumatic Cleaner #ATEX Pneumatic Cleaner #ATEX Cleaner ship #lng ship #tanker ship #container ship #cruise ship #chemical ship #naval ship #offshore #lng #oil ship
